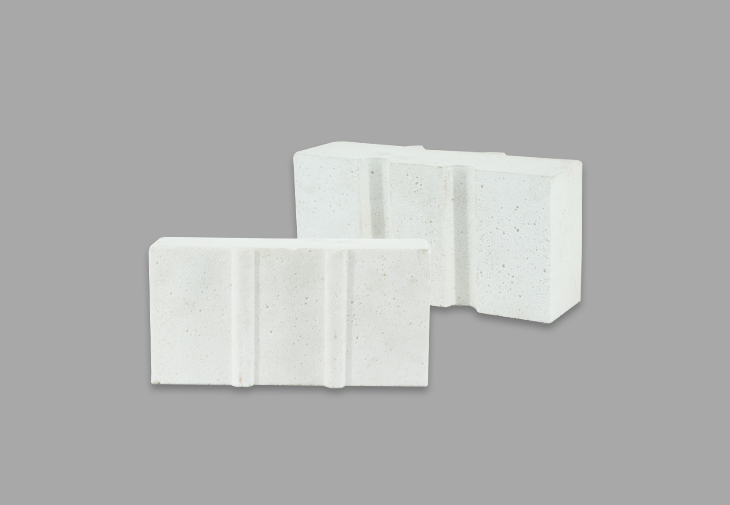

Corundum - mullite brick refers to high purity or pure raw materials made of refractory products. Using industrial alumina powder and pure clay, bauxite or silica as raw materials to synthesize pure mullite raw materials, low content of alkali metal oxides.
The products made with mullite grain as aggregate have good thermal shock resistance, and the products made with corundum sand as aggregate have good corrosion resistance.
(1) Good high temperature strength
(2) Good thermal shock resistance
(3) Long service life
(4) Strong thermal conductivity
(5) Low creep rate
Petrochemical industry, metallurgy industry, glass industry, Chemical industry, energy industry.
|
Item |
Index |
||||||
|
GMZ-88 |
GMZ-85 |
GMZ-80 |
|||||
|
Standards |
Measured Values |
Standards |
Measured Values |
Standards |
Measured Values |
||
|
化学成分 |
Al2O3（%≥） |
80 |
85.17 |
85 |
83.29 |
80 |
80.5 |
|
Fe2O3（%≤） |
0.8 |
0.48 |
1 |
0.7 |
1 |
0.73 |
|
|
Body density（g/cm3） |
≥3.0 |
3 |
≥2.85 |
2.92 |
≥2.75 |
2.8 |
|
|
porosity（%≤） |
15 |
13.75 |
16 |
14.88 |
18 |
16.23 |
|
|
Cold pressing strength（Mpa） |
≥120 |
132 |
≥100 |
112 |
≥100 |
103 |
|
|
Refractoriness under load/℃(0.2Mpa,0.6%) |
≥1700 |
＞1700 |
≥1682 |
＞1700 |
≥1650 |
1675 |
|
|
Heating line changes /℃（1400℃×2h） |
-0.1~0.1 |
0.1 |
-0.1~0.1 |
0.1 |
-0.1~0.1 |
0.14 |
|
|
Thermal shock stability（1100℃） |
≥10 |
＞15 |
≥10 |
＞12 |
＞10 |
||
High alumina poly light brick is a high quality lightweight refractory material.
Checker bricks are heat transfer media used in the regenerative chambers of blast furnaces and hot blast stoves.
Mullite lightweight insulation brick is a high-quality insulation material.
Low creep clay bricks have a low creep rate in high temperature environments and can maintain good shape and dimensional stability for a long time.
Silica-molybdenum bricks have high resistance to chemical erosion and excellent wear resistance, and are the preferred material for the transition zone and preheating zone of large cement kilns.
Made from industrial alumina and refractory kaolin as the main raw materials, produced through scientific formulation...
